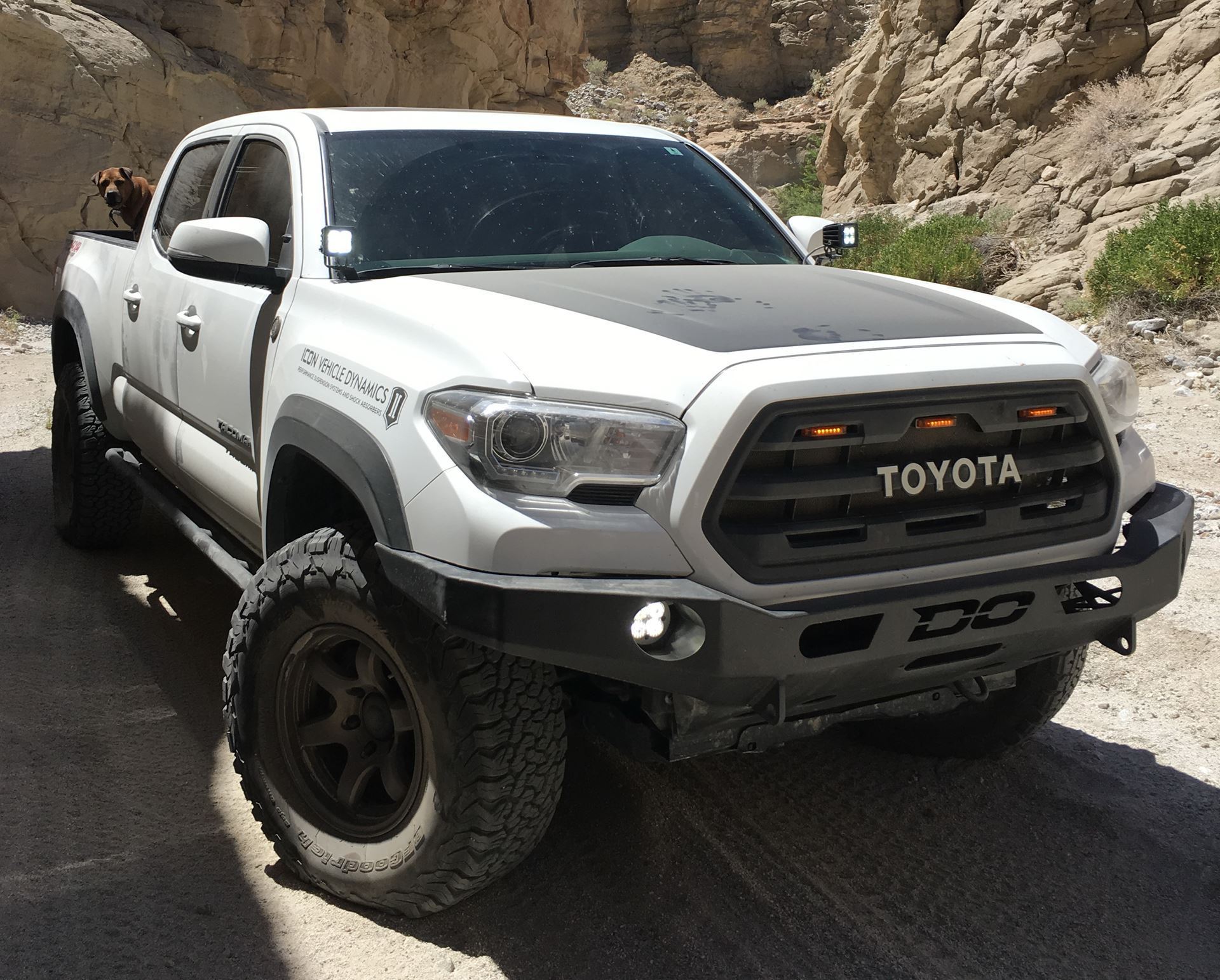

Stage 2 2016-2018 Tacoma package

Tacoma Hybrid bolt on sliders (2016-2018) Tacoma Front bumper (2016-2018) Icon Front coil overs 58630 (QTY.1) | 05-UP TACOMA 2.5 VS IR COILOVER KIT (2016-2018) 56503 (QTY.2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS NR

The Squadron® Sport is hands down the best $119.95 LED on the market today.  Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies.  The Squadron® Sport utilizes 4 Cree XP-G2 LEDs producing an impressive 1,800 lumens at 20 watts making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: 1,800 Utilizing 4 Cree XP-G2 LEDs
Wattage/Amps: 20W / 1.4A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Enjoy 4,300 lumens utilizing 4 Cree XM-L2 LEDs! The Squadron-R Pro’s light weight and powerful capabilities make it the ideal companion for all of your late night off-roading adventures! Relish high-performance and durability with nearly 50,000 hours of auxiliary LED light, optimized for a more traditional LED experience and aftermarket bumper featuring a 4” round hole. As always, Baja Designs offers a 30 Day Satisfaction Guarantee & Limited Lifetime Warranty.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Lumens: 4,300 Utilizing 4 Cree XM-L2 LEDs
Wattage/Amps: 42W / 3.5A
Dimensions: 3.5" x 2.77" x 3.5"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
  • Waterproofing: IP68 rating,
  • rated line pull: 10,000 pounds (4,545 kilograms) single line,
  • motor: 6.6hp series wound,
  • control: remote switch, 12 feet (3.7m) lead, gear train: 3
  • -stage planetary, gear ratio: 218:1, clutch: sliding ring gear, brake: automatic out-of-drum, drum size:
  • Diameter 2.5 inch, cable: 98.5 feet 3/8 inch diameter, cable type: synthetic rope,
  • fairlead: hawse, remote control: included,
  • recommended battery: 650CCA minimum for winching, battery leads:
  • 25 square millimeter, 72 inch (1.83m) 1, finish: textured black,
  • weight: 67.0 pounds (30.4 kilograms);
  • mounting bolt pattern: 10.0 inch x 4.50 inch, o
  • verall dimensions: (L x W x H) 22.3 inch x 5.4 inch x 9.4 inch.
$3,445.00

Package includes:

  • Tacoma Hybrid bolt on sliders (2016-2018)
  • Tacoma Front bumper (2016-2018)
  • Icon Front coil overs 58630 (QTY.1)
  • 56503 (QTY.2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS NR



HYBRID SLIDERS

The 16-18 Hybrid sliders are built with 1.75in .120 wall round tube steal along with 2x2 .120 wall sqaure tubing. DeMello Off-Road tube sliders use a "L" shaped bracket to capture the frame for both our weld on sliders and our bolt on sliders.

Our sliders use all grade 8 hardware and require minimum drilling. Bolt on sliders can be bolted on with out drilling but if you plan to use them as sliders we recommend drilling the extra holes. If you just want a step or use as door ding protection then using the factory holes would be sufficient.

TECH INFO:

  • .120 wall 1.75in round tube
  • .120 wall 2x2 Sqaure tube
  • 4in x 3/16" gussets
  • 5"X3"x3/16" (L) brackets
  • Fully mig welded
  • Weight 50LBS



2016-2018 Tacoma bumper.

The new DeMello off-road Tacoma bumper offers our signature reinforcements inside, along with it's light weight construction that keeps it strong yet save on weight.

Our new bumpers come in either a flat top version with no hoops. Low profile hoop (perfect for single or double row LED bars) and Baja style perfect for 4-5in tall Lights with low depth requirements.

We built these bumpers with low profile and weigh in mind, we also wanted to increase approach angle all while adding the use of a recovery winch. We also believe in a "cut version" of the front Tacoma bumper. The body on frame design of all Toyota trucks and SUV's combined with soft body mounts allows for a lot of movement and having the soft plastic bumper transition between them helps ensure a good fitment and reduces the potetial for damage to the headlights and fenders.

Tech Info:

  • 1/2in up rights pass through shackle design
  • 3/16in intergrated structure acts as a skelton to the bumper
  • 1/4in winch and mounting plate keeps the weight where it needs to be and stronger where it has to be.
  • 1/8in skin keeps the bumper lightweight but still strong with the reinforced skeleton.
  • Fully welded in the U.S.A.

Key notes:

  • When ordering please note the two different hoop options. One is the Icon Low profile hoop the other is the DeMello mid height hoop.
  • Bumpers come bare-metal but we also offer powder coating. Unfortunately powder coating offers no warranty from defects from manufacture or shipping. If a perfect finish is desired, please order bare-metal and have powder coated or painted locally for the best results.
  • Bumpers are generally made to order and typical wait times can be 4-6 weeks. Thank you.
  • Factory fog lights do not fit with our aftermarket bumpers. We offer several different options for them

Icon suspension.

Icon Coil overs (58630)

Rear icon 2.0 shocks (56503)

KEY FEATURES:

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of lift height
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear IFP shock with 5/8" shaft
  • Bolt-on system means no cutting or welding necessary for install

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8.5" Wide, 4.75" Backspace

Aftermarket Tires: 33 x 11.50

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Package includes:

  • Tacoma Hybrid bolt on sliders (2016-2018)
  • Tacoma Front bumper (2016-2018)
  • Icon Front coil overs 58630 (QTY.1)
  • 56503 (QTY.2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS NR



HYBRID SLIDERS

The 16-18 Hybrid sliders are built with 1.75in .120 wall round tube steal along with 2x2 .120 wall sqaure tubing. DeMello Off-Road tube sliders use a "L" shaped bracket to capture the frame for both our weld on sliders and our bolt on sliders.

Our sliders use all grade 8 hardware and require minimum drilling. Bolt on sliders can be bolted on with out drilling but if you plan to use them as sliders we recommend drilling the extra holes. If you just want a step or use as door ding protection then using the factory holes would be sufficient.

TECH INFO:

  • .120 wall 1.75in round tube
  • .120 wall 2x2 Sqaure tube
  • 4in x 3/16" gussets
  • 5"X3"x3/16" (L) brackets
  • Fully mig welded
  • Weight 50LBS



2016-2018 Tacoma bumper.

The new DeMello off-road Tacoma bumper offers our signature reinforcements inside, along with it's light weight construction that keeps it strong yet save on weight.

Our new bumpers come in either a flat top version with no hoops. Low profile hoop (perfect for single or double row LED bars) and Baja style perfect for 4-5in tall Lights with low depth requirements.

We built these bumpers with low profile and weigh in mind, we also wanted to increase approach angle all while adding the use of a recovery winch. We also believe in a "cut version" of the front Tacoma bumper. The body on frame design of all Toyota trucks and SUV's combined with soft body mounts allows for a lot of movement and having the soft plastic bumper transition between them helps ensure a good fitment and reduces the potetial for damage to the headlights and fenders.

Tech Info:

  • 1/2in up rights pass through shackle design
  • 3/16in intergrated structure acts as a skelton to the bumper
  • 1/4in winch and mounting plate keeps the weight where it needs to be and stronger where it has to be.
  • 1/8in skin keeps the bumper lightweight but still strong with the reinforced skeleton.
  • Fully welded in the U.S.A.

Key notes:

  • When ordering please note the two different hoop options. One is the Icon Low profile hoop the other is the DeMello mid height hoop.
  • Bumpers come bare-metal but we also offer powder coating. Unfortunately powder coating offers no warranty from defects from manufacture or shipping. If a perfect finish is desired, please order bare-metal and have powder coated or painted locally for the best results.
  • Bumpers are generally made to order and typical wait times can be 4-6 weeks. Thank you.
  • Factory fog lights do not fit with our aftermarket bumpers. We offer several different options for them

Icon suspension.

Icon Coil overs (58630)

Rear icon 2.0 shocks (56503)

KEY FEATURES:

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of lift height
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear IFP shock with 5/8" shaft
  • Bolt-on system means no cutting or welding necessary for install

WHEEL & TIRE FITMENT INFO:

OEM Wheels & Tires: Yes

Aftermarket Wheels: 8.5" Wide, 4.75" Backspace

Aftermarket Tires: 33 x 11.50

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)
